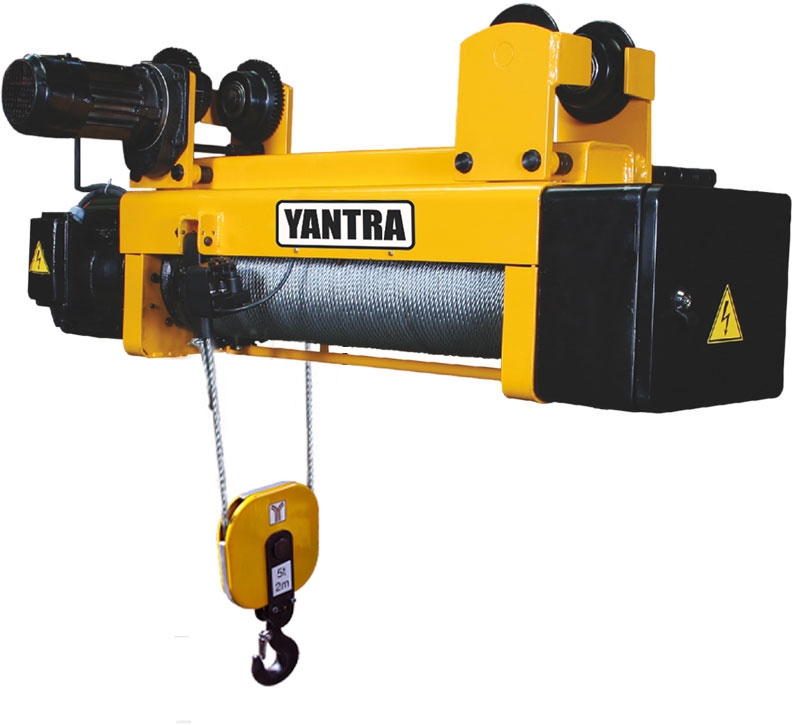

Modification with trolley, normal headroom – reeving 2/1

Description

1. The dimension В2 (rail width) has a range as follows:

size 3 from 110 to 300 mm
size 4; 5; 6 from 130 to 300 mm.
sizeт 9 from 150 to 300 mm.
sizeт 1from 170 to 300 mm.

2. The dimension В1 refers to a speed of the trolley 20 m/min.

3. Electric hoists with lifting height 30 and 36 mare realized on a special request of the customer.

Make request Print

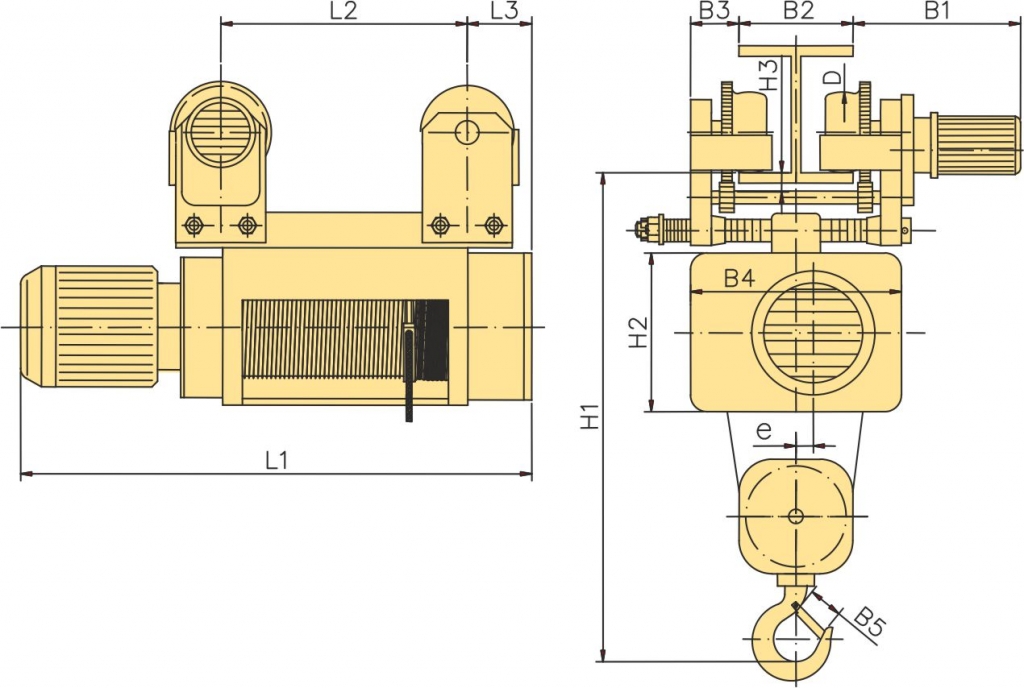

Size	Lifting height (m)		Load capacity (kg)	Dimensoins (mm)
				Lifting speed (m/min)				L2	L3	H1	H2	H3	B1	B3	B4	B5	D	e
				8	12	2/8	2/12
				L1
3	Н	6,3	1000	831	831	877	877	343	170	810	268	23,5	289	37,5	312	34	100	30
		9		907	907	953	953	419
		12,5		1007	1007	1053	1053	519
		18		1163	1163	1209	1209	595
		25		1361	1361	1407	1407	793
4	Н	6,3	2000	945	945	996	996	412	144	1033	352	30	343	42	428	40	110	41,5
		9		1026	1026	1077	1077	493
		12,5		1131	1131	1182	1182	598
		18		1295	1295	1346	1346	698	150
		25		1504	1504	1555	1555	907
5	Н	6,3	3200	998	1035	1066	1066	455	144	1085	354	30	343	42	430	45	110	41,5
		9		1097	1134	1165	1165	554
		12,5		1225	1262	1293	1293	682
		18		1427	1464	1495	1495	820	150
		25		1684	1721	1752	1752	1077
6	Н	6,3	5000	1099	1137	1190	1190	469	201	1258	424	35	364	55	490	50	150	44,5
		9		1197	1235	1288	1288	576
		12,5		1323	1361	1414	1414	693
		18		1521	1559	1612	1612	801
		25		1774	1812	1865	1865	1054
9	Н	6,3	10000	1279	1279	1275	1275	493	214	1570	500	43	395	61	600	71	180	50,5
		9		1373	1373	1369	1369	587
		12,5		1496	1496	1492	1492	710
		18		1689	1689	1685	1685	813
		25		1936	1936	1932	1932	1060
1	Н	7,5	16000	1506	1506	1506	-	660	227	1722	548	40	430	71	684	71	250	40,5
		9		1565	1565	1565	-	719
		12,5		1712	1712	1712	-	866
		18		1943	1943	1943	-	942
		25		2236	2236	2236	-	1235

Note:

For dimension”1” speeds of lift are as it follows inm/min

5

7,5

1,25/5

–

Lifting capacity:*

Lifting height:*

Lifting speed :*

Hoist type:*

Work duty FEM:

Preferences for reeving of hoist?:

Do you need end trucks for crane?

Power supply voltage required?:*

Control voltage required?:*

Control through push button pendant control:

Do you have any additional special requirements?:

Name:*

Email:*

Phone:*
