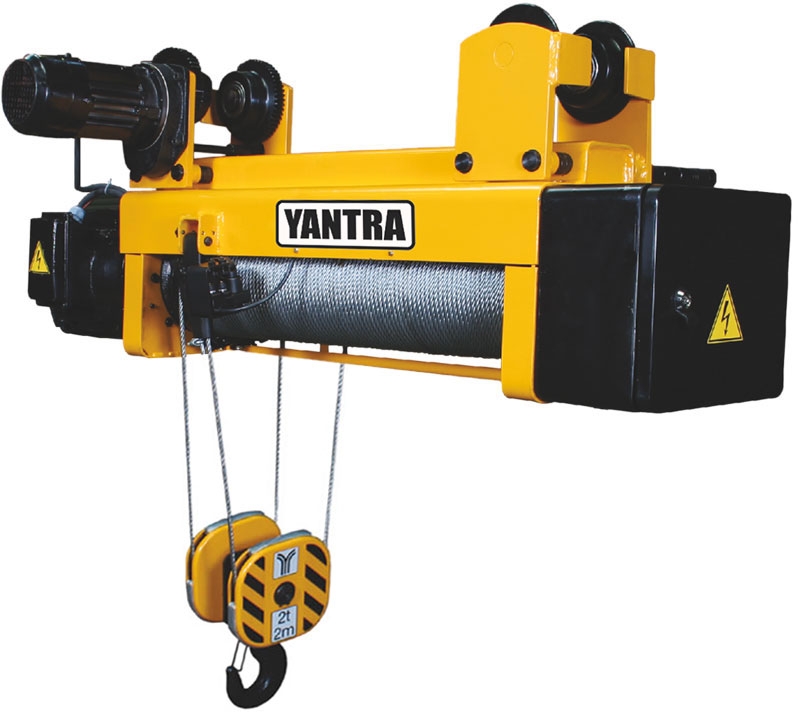

Modification with trolley, normal headroom - reeving 4/1


Size

Lifting
height

(m)

Load
capacity

(kg)

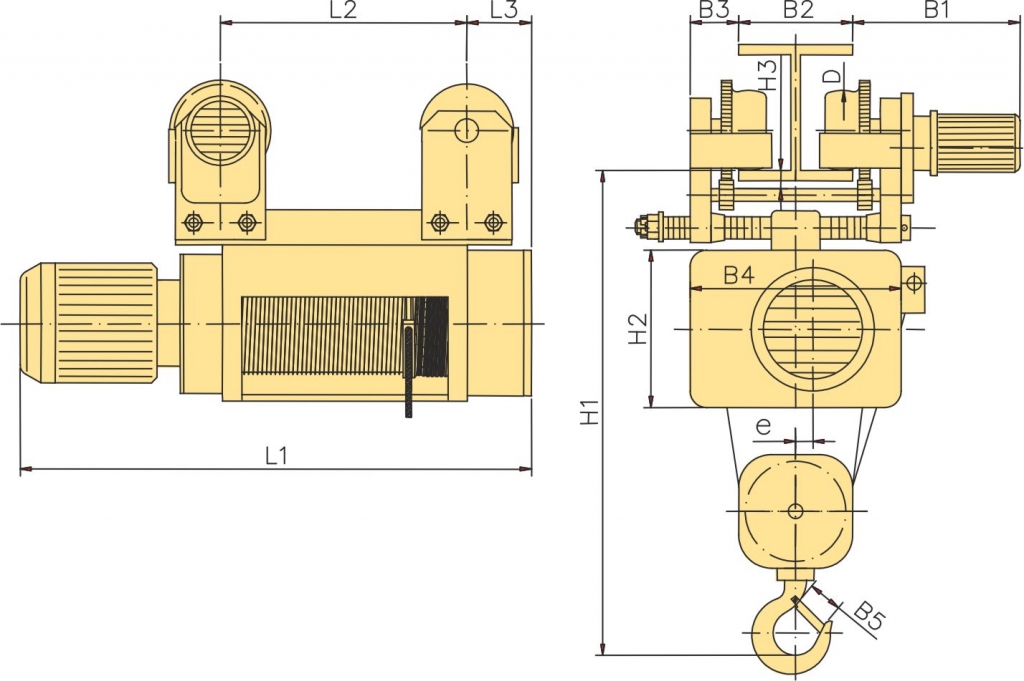

Dimensions (mm)

Lifting speed

(m/min)

L2

L3

H1

H2

H3

B1

B3

B4

B5

D

e

4

6

4/1

6/1

L1

3

Н

6,3

2000

1007

1007

1053

1053

440

170

770

268

23,5

289

37,5

312

40

100

14

9

1163

1163

1209

1209

514

252

12,5

1361

1361

1407

1407

712

252

4

Н

6,3

4000

1131

1131

1182

1182

524

161

983

352

30

343

42

428

50

110

17

9

1295

1295

1346

1346

586

263

12,5

1504

1504

1555

1555

795

5

Н

6,3

6300

1225

1262

1293

1293

606

163

1048

354

35

364

55

430

56

150

17

9

1427

1464

1495

1495

701

270

12,5

1684

1721

1752

1752

958

6

Н

6,3

10000

1323

1361

1414

1414

593

211

1284

424

43

395

61

490

71

180

20

9

1521

1559

1612

1612

676

326

12,5

1774

1812

1865

1865

929





Note: 1. Dimention B2 (rail width) has a range as follows:

  • size 3 from 110 to 300 mm
  • size 4; 5  from 130 to 300 mm
  • size 6 from 150 to 300 mm

2. The dimension B1 refers to a speed of the trolley 20 m/min.
3. Electric hoists with lifting height 15 and 18 m are realized on a special request of the customer.
